ARM Industrial PCs

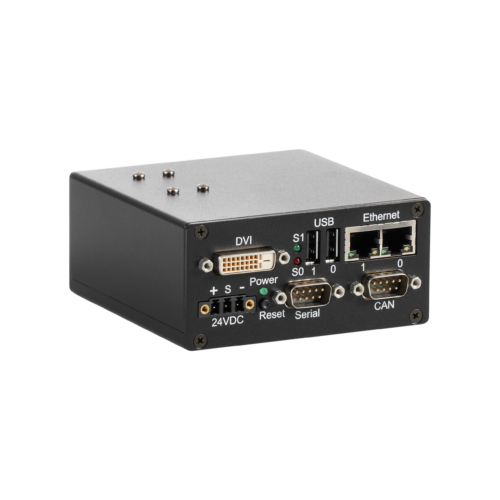

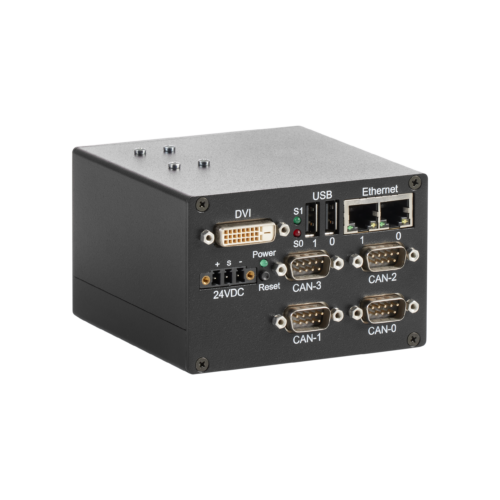

Janz Tec emPC-A/iMX6

NXP i.MX6 quad-core CPU based on ARM® Cortex®-A9 with 4 x 800 MHz
2 GB DDR3 RAM
2 x 10/100/1000 MBit/s Ethernet
2 x RS232 or 2 x CAN/CANopen or 1 x RS232 & 1 x CAN/CANopen
additionally with RS232/485, CAN/CANopen, 8x DIO, 4x AI, 4x AO

Compact fanless embedded system based on i.MX6Q

The emPC-A/iMX6 is a compact and fanless embedded controller system. It is based on the i.MX6Q ARM® Cortex®-A9 quad-core processor. The system combines a strong CPU unit with a fanless and robust system design, two ethernet ports and up to 4 D-SUB interfaces for either CAN/CANopen or RS232/RS485, which makes it suitable for machine control or IoT gateway applications. emPC-A/iMX6 systems can be expanded with additional expansion boards.
